Description

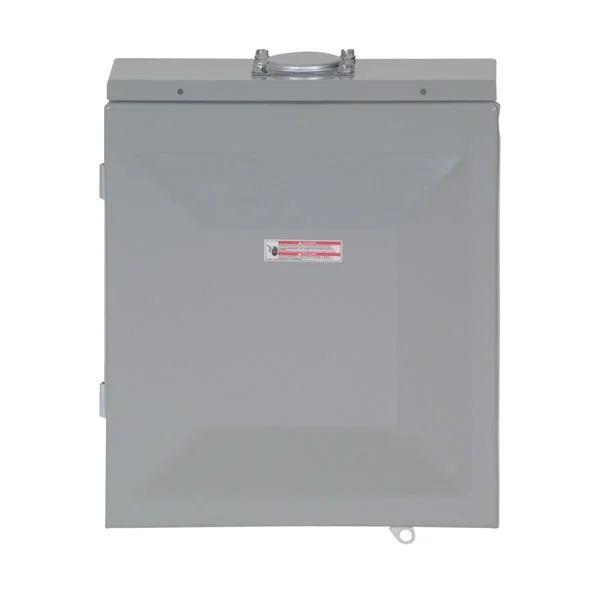

Outdoor main lug load center, 100 A, 6 space 12 circuit. NEMA type 3R enclosure with a rainproof cover. Copper bus bar, accommodates standard QO or QO tandem circuit breakers. ANSI certified and UL listed.
Product Details
Manufacturer: SCHNEIDER ELECTRIC
Manufacturer’s Part Number: QO612L100RBCP
Show me more Main Lug Load Centers
- Indoor and outdoor versions
- Separate flush or surface mount covers
- QO three-phase main circuit breaker panels can be field upgraded to provide 100 kA short circuit current ratings
- Split branch neutral with up to 50% more terminations than UL requirement – simplifies wiring and reduces clutter
- Convertible mains allow fast field conversion between main breaker and main lugs to meet changing job requirements
- Indoor enclosures designed to rotate 180 deg to accommodate top or bottom service entrance feed, saving expensive service cable
- Straight-in mains wiring and uniform termination lugs help minimize service cable bends, cutting waste and saving installation time
- Combination slot/square-drive neutral, ground and cover screw accommodate both standard flat blade screwdrivers and square-head drivers
- Single, captive interior mounting screw can’t be lost. Interior mounts quickly and can easily be removed during rough-in for paint or theft protection
- Exclusive shielded copper bus features electro tin plated copper bus bars sandwiched between two rugged polymer shields to insulate and secure the interior
| Breaker/Load Center Type | Main Lug |
| Bus Bar Material | Aluminum |
| Cable Size | #8 to 1 AWG |
| Color | Gray |
| Cover/Lid Type | Surface |
| Current Rating | 100 A |
| Enclosure Type | NEMA 3R |
| Finish | Baked Enamel |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Circuits | 12 |
| Number of Phases | 1 |
| Number of Spaces | 6 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
| Catalog | Click here to download |
| Specification Sheet | Click here to download |
| Instruction/Installation Manual | Click here to download |
